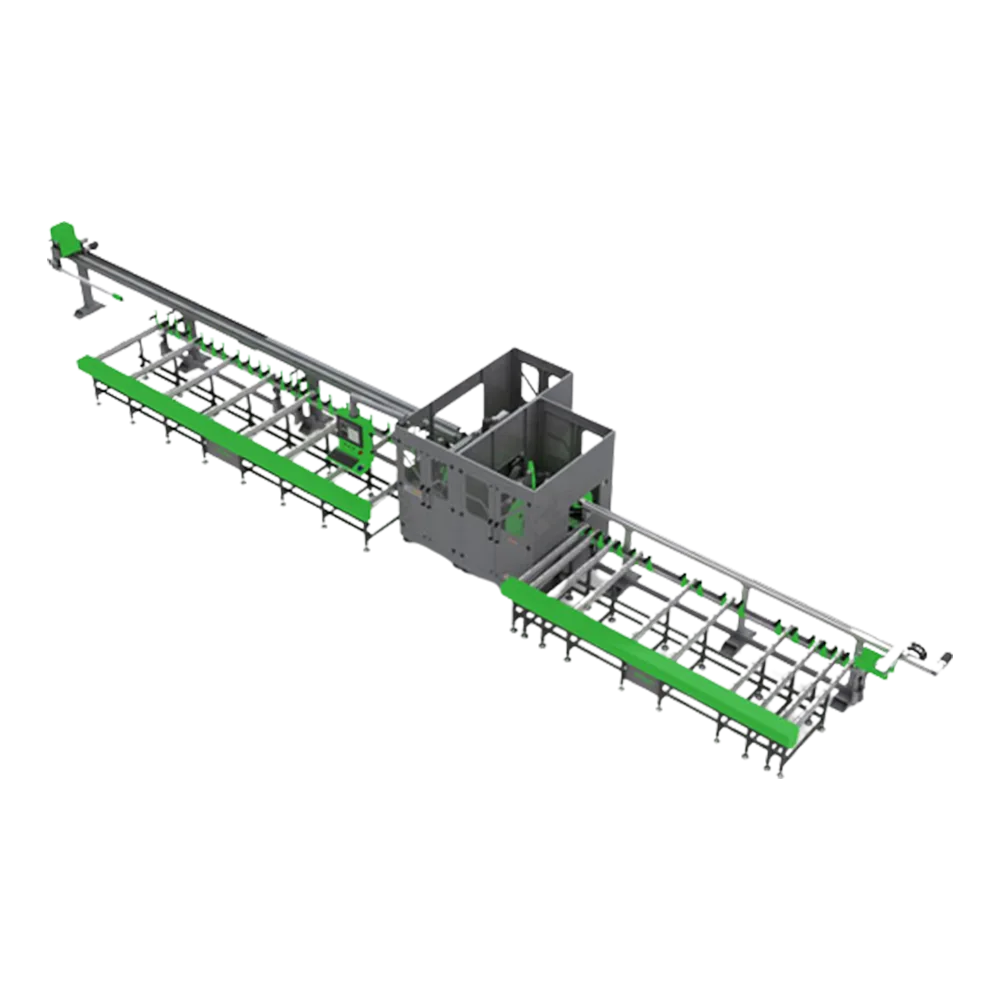

RMC-501

FEATURES OF RISUS RMC-501

• It is designed for machining and cutting of PVC profiles as a line. It is integrated with window design program.
• Pc controlled with Windows operating system.
• Easy and fast data transfer because of Pc ( by USB memory , cable , cd , wireless, Ethernet , mail etc. )
• Remote control service technology.
• Unlimited profile system data memory.
• Thanks to 19’’ LCD control screen for being user-friendly
• 4 different unit (feeding unit , machining unit , cutting unit , off-load unit ) and 9 axes servo controlled.
• 10 slots for preloading the profiles.
• Max. Profile bar length is 6500 mm.
• Rotary tooling system that can turns 360 degree.
• 8 different tools on rotary tooling system. Because of this machining is so fast.

PROCESSES IN MACHINING UNIT:

1- Drainage slots
2- Ventilation holes
3- Connector holes
4- Hinge holes
5- Locking markings
6- Window Handle holes
7- Window handle channels
8- Door locks and channels
9- Sliding window handle and etc…

• There are 3 different saws in the cutting unit. Because of this, cutting process is so fast.
• Cutting length sensitivity is +/- 0,3-0,5 mm.
• Cutting angles: 45⁰ , 90⁰ and 135⁰
• Unloading z type conveyor for waste parts.
• Barcode system for mass production.
• Capacity : according to number of process , 170-200 windows / 8 hours
